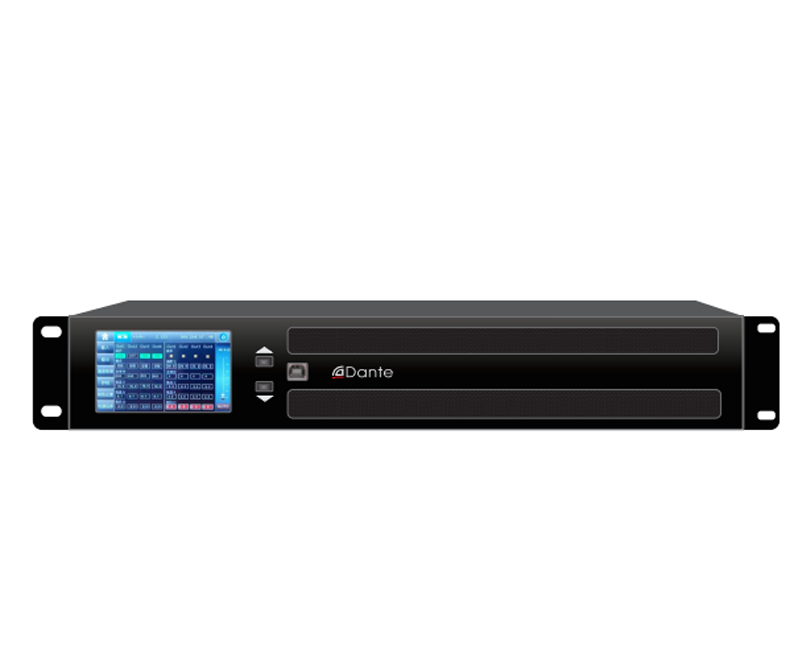

A 4.3-inch touch screen
Support key and touch screen double backup debugging function
Support for TCP, UDP, USB, RS232, and RS485 control
Support for each channel temperature, power, voltage, and current monitoring
Supports 2 in 2 and out DSP processor
The signal source supports analog signal input, sine wave signal input, pink noise input, white noise input, Dante digital audio signal input (optional module), AES digital audio signal input.
Input sensitivity: 0dB, 6dB, 12dB are optional
Input gain: -60- + 15dB is optional
The input channel supports the phase selection
The input channel supports the mute function
The input channel supports the noise gate-adjustable
Input channel supports 31 PEQ adjustable, BYPASS, high and low pass filter, and copy and paste reset function.
The input channel supports an adjustable time delay
Input and output channel support routing optional, can be any channel input, multi-channel output.
The input channel can be sent to 2-channel FIR filter output.
The output channel can be sent to the 2-channel FIR filter input.
The output channel supports 10-segment PEQ adjustable, supports BYPASS, supports high and low pass filter, and supports copy and paste reset function.
The output channel supports an adjustable time delay
The output channel supports the compressor as adjustable
The output channel supports the adjustable limiter
Output gain: -60- + 15dB is optional
Supports 80 scene save mode
Support simplified Chinese, Traditional Chinese, English three languages
*4.3" touch screen
*8Ω Stereo power：2X800W
*4Ω Stereo power：2X1200W
*8Ω bridging power：1X1600W
*Fixed pressure output power：2X800W
*Standby power consumption ：100W
*Input connector：XLR
*Input impedance：20KΩbalance
*Input polymorphic inhibition ratio：>80dB
*Output connector：Speakon base
*SNR：>102dB
*Damped coefficient：> 1000 @ 8Ω
*Total harmonic distortion：
       <0.1%(20 Hz-20 kHz 1W)
*Fre-response：20Hz-20KHz(+0/-0.3dB,1W/8Ω)
*AC voltage:180-240V 50-60Hz
*Box size：88mmX440mmX370mm
