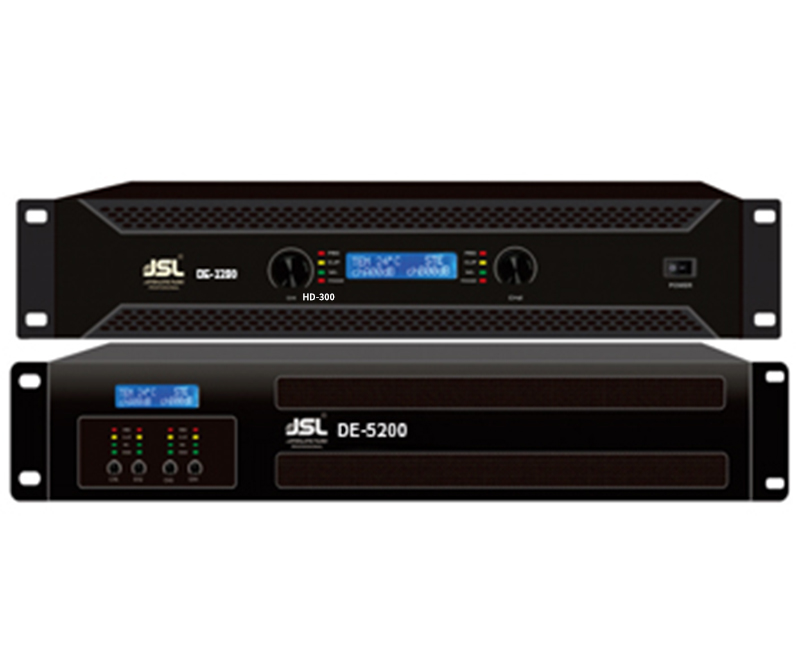

DE5200
（With display of the digital power amplifier ）
（four channels）

The 2U case design adopts the PWM digital pulse width modulation and amplification principle design, which has the advantages of high efficiency, small volume and light weight.
Two channels of input and output, built-in analog compression circuit, with dot array display display volume, temperature indication, status indication.
XLR seat input, using XLR seat cascade output.
Support for 0.775V,1.44V sensitivity selection
Remote switch machine parameters (optional)
The device supports the TCP / UDP protocol network remote switch machine
Support for computer / tablet / mobile phone software management
Centralized control of single device and multiple device groups can be realized through the computer
Through the computer can realize the multi-device delay switch function, the delay time can be adjusted.
The device name and the device IP address can be changed through the computer
Support for the central control protocol control
Support the serial port RS485 access mode
Support the serial port RS232 access mode
8Ω Stereo power：4X1300W
4Ω Stereo power：4X2050W
8Ω bridging power：2X2600W
Input level：0.77V、1.44V two models
Input connector：XLR
Input impedance：20KΩ balance
Input polymorphic inhibition ratio：>80dB
Output connector：Speakon base
SNR：>112dB
Damped coefficient：> 1000 @ 8Ω
Total harmonic distortion：<0.1%(20 Hz-20 kHz 1W)
Fre-response：20Hz-20KHz(+0/-0.3dB,1W/8Ω)
AC voltage:180-240V 50-60Hz
